3D CAD drawing:
Chrysler Crossfire turn signal adapter


Contents:

  1. Turn signal adapter

Note:
I take no responsibility or liability for what are written here, you use the information at your own risk!


Chrysler Crossfire, Turn signal adapter:

Introduction:

By accident I destroyed my front turn signal light. When I looking for spare parts for Chrysler Crossfire (Europe edition) I found that they no longer manufactured it, and there where no used to find either. Luckily we have 3D-printers today. I can't design and print a complete turn signal light but I can design an adapter where I can mount a certified LED turn signal.


Turn signal parts:

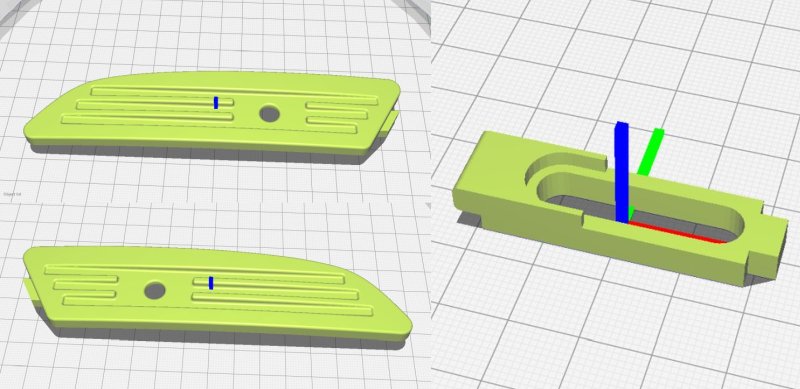

Chrysler Crossfire: 3D-printed turn signal adapter

This is the parts I have designed, it's placed on the left and right fender. One for each side and a lock mechanism.


Left side:

3D CAD: EQ6 Pad

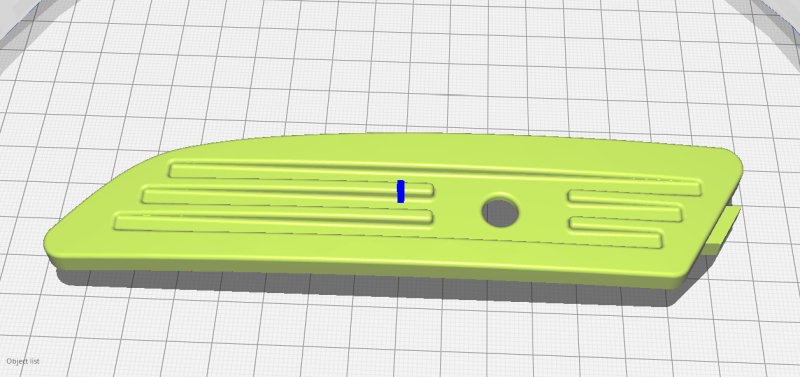

This is the left side adapter.


Right side:

3D CAD: EQ6 Pad

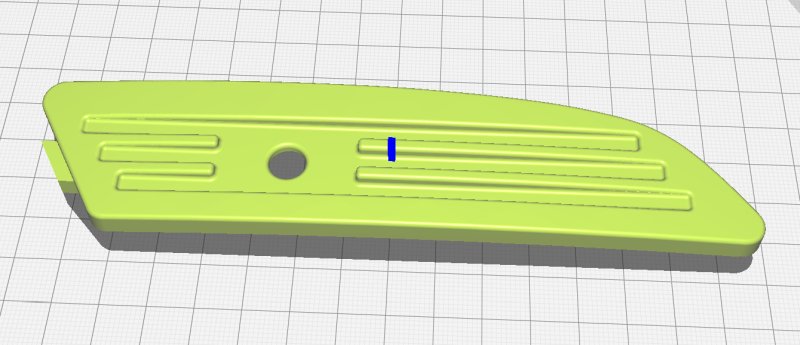

This is the right side.


3D CAD: EQ6 Pad

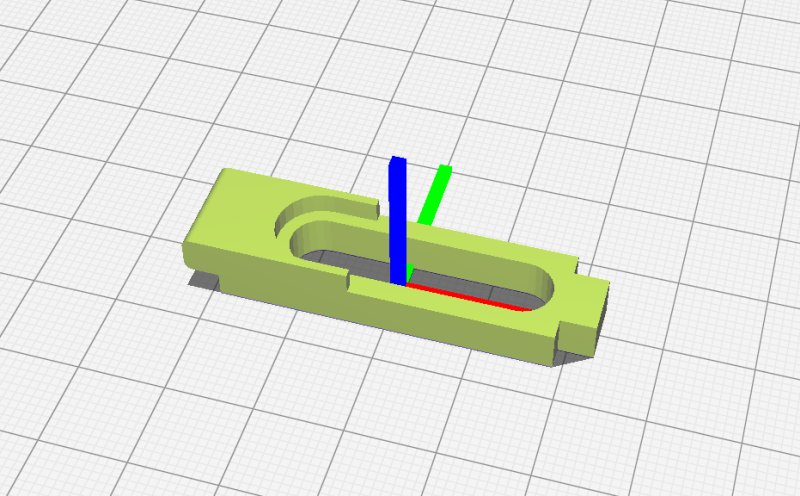

Too each adapter there is a need of a lock mechanism.

I have repaired my turn signal glass cover and haven't rebuilt it with these adapters yet. The prototypes I have 3D-printed works well, but if you want to test it, start with just one of them. The quality of the surfaces depend very much on the 3D-printer.

My project: Chrysler Crossfire turn signal page.

If you 3D-print this adapter, let me know how well or bad it worked: Contact, if there is something wrong I try to correct it.

Download of STL file:

crossfire-turn-signal-parts v1.2.zip(latest version, not test printed)
Go Back to content

Go Back
To page II, to be continued ?
