Chrysler Crossfire
Headlights


This is one information page of my collection of what I have repaired on my Crossfire.

Note:
You should not do any repair on your car if you don't have enough experience and knowledge! You use this information at your own risk! Don't blame me if something goes wrong.


Content:

Crossfire headlights are unique and not shared with Mercedes.

Chrysler Crossfire, Headlights

2. Melted H7 lamp connector:

Chrysler Crossfire H7 lamp socket melted

One of my H7 bulb got a short cut and got very hot. The connector to the H7 socket melted and now I have to repair it.


Chrysler Crossfire H7 lamp socket melted

This is what's left of the socket and I need to replace it now.


Investigations of H7 socket:

Chrysler Crossfire H7 lamp socket melted

I took some photos of a H7 socket that still is functional.


Chrysler Crossfire H7 lamp socket melted

The one that melted sit at a very difficult position so it's easier to take photos of this one.


Chrysler Crossfire H7 lamp socket melted

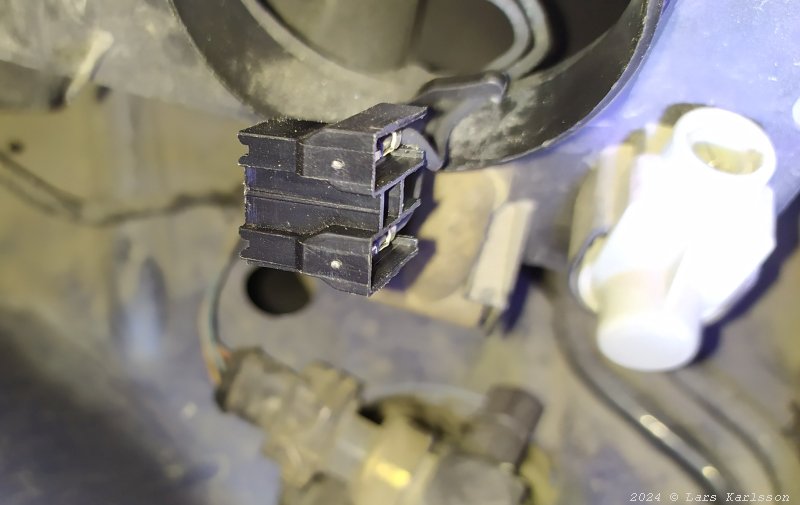

There are two female connectors in the socket.


Chrysler Crossfire H7 lamp socket melted

The wire attach in a 90 degree angle.


Chrysler Crossfire H7 lamp socket melted

I don't want to cut the wires, I have to find a new socket where I can transfer the connectors to.


New sockets:

Chrysler Crossfire H7 lamp socket melted

I search the internet for spare parts. I found these two with attached cables.


Chrysler Crossfire H7 lamp socket melted

The left one has a ceramic socket witch could handle high temperatures, but it's straight and difficult to implement. The black one to the right has a 90 degree socket which is easier to install.


Chrysler Crossfire H7 lamp socket melted

With my tool set I can release the connectors from the socket. I use the one to the right.


Chrysler Crossfire H7 lamp socket melted

Here how it looks like dismantled. The rectangular holes grip a hook in the socket, not exactly the same design as the original ones.


Install the new socket:

Chrysler Crossfire H7 lamp socket melted

Some small adjustment of the socket and it fit. Maybe I put a drop of glue to hold the connectors safely in place.


Chrysler Crossfire H7 lamp socket melted

On this photo it looks like that it is a lot of space, but in reality it's very difficult reach. The cables are very short too.
