6: The crossovers and update of components

The main speakers has bi-amp crossover filters. The rear speakers has bi-wiring crossovers, they have a common zero in the crossovers and will burn your amplifier if you try to bi-amp them.

Cheaper crossovers are built with bi-polar electrolytic capacitors, even these ones. I will replace them with non-polar capacitors.

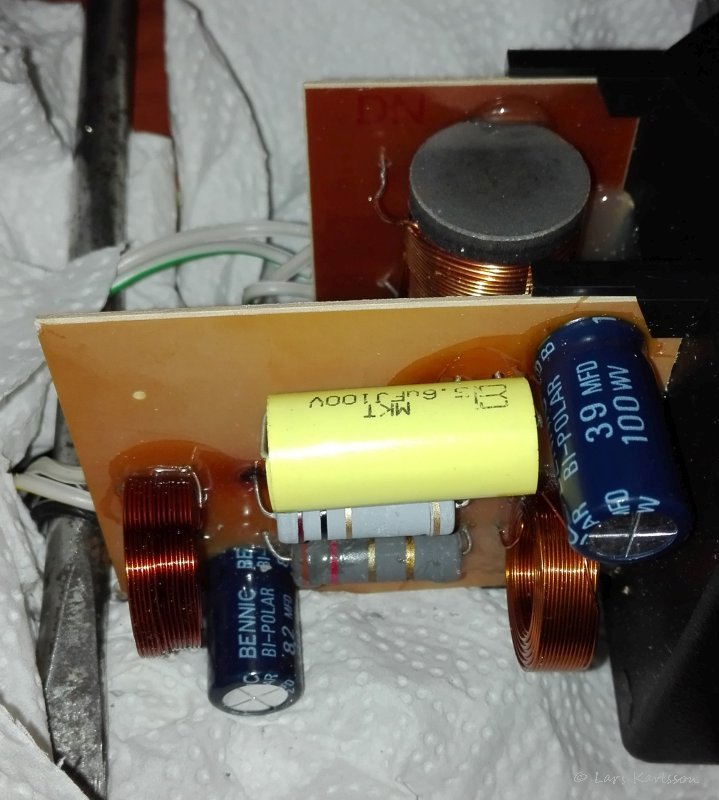

When I opened the cabinet and took out the filters I saw, it had been hot here! The resistor to the tweeter crossover was burned. The earlier owner liked to play loud! Here I have replaced the burnt resistor with a new one, I mounted it a bit higher to get better air cooling of it.

Upper row, the old capacitor to the left and the new yellow one to the right. Lower row, the burnt 1 ohm resistor (I guess it's 1 ohm, but it's hard to identify the color ring of this hard burnt resistor) and the new one to the right.

I bought new capacitors to all the speakers crossovers, but left the big 39uF and 56uF capacitors to be replaced later. I want to listen to the speakers and hear if they are worth spending more money on them first. Big non-polar capacitors are expensive.

Heating up the solder machine and start to replace the old components.

It's a bit tight around the new capacitors, but manageable.
