10, Upload new 3D printer software - Marlin:

Replacing the 3D printer software with Marlin 1.1.9:

After searching the internet I found that more people than me had problem with the 3D printer when calibrating it. It looks that all of them replace the internal software in the 3D printer with a software called Marlin and version 1.1.9.

I think it's wise for me too to do it.


3D printer, assembling and setup

I find the Marlin software here and with lot of instructions:

After reading the instructions I understand that this could be complicated. The software is written in C++ and after you setup it you have to compile it and upload it to the printer with a special software.


3D printer, assembling and setup

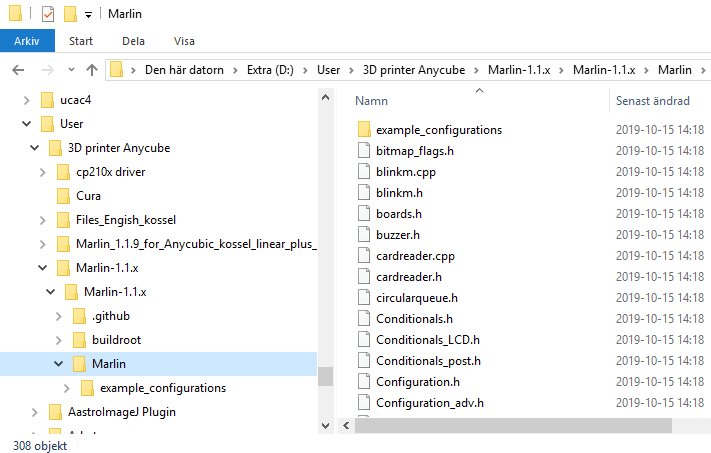

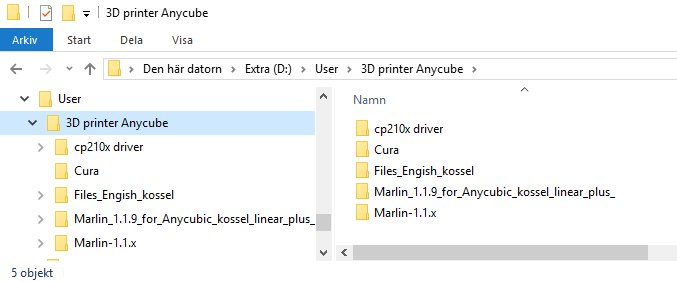

Here are the software I have downloaded until now and installed on my PC. There are a huge amount of setups to do special for each 3D printer, there are many different printers out there. The map Marlin-1.1.x is the Marlin software I just downloaded, version 1.1.9. The map with name Marlin 1.1.9 is a preconfigured setup files I downloaded, se below.


3D printer, assembling and setup

To setup these configure-files from scratch looks to be a heavy job, luckily I found someone that had already done that.

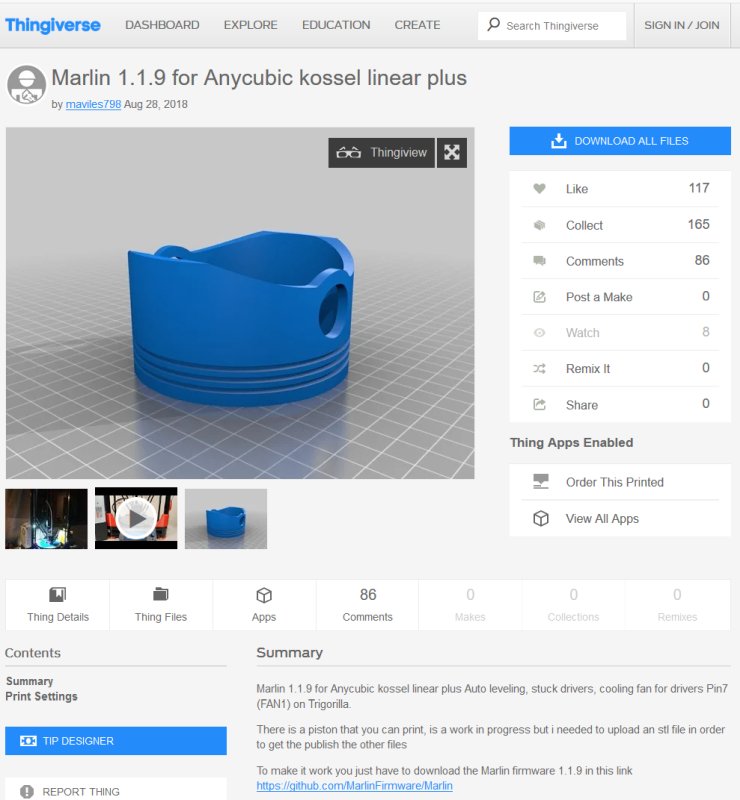

It's Maviles that has uploaded these files at Thingiverse:


3D printer, assembling and setup

These setup files should replace the original setup files Configuration.h and Configuration_adv.h you see in my list of files above. Save the original ones somewhere safe. What the different parameters in the files do you can find at Marlin homepage.

To save my brain to overheating I take a break now, who said that 3D printing is easy ?


3D printer, assembling and setup

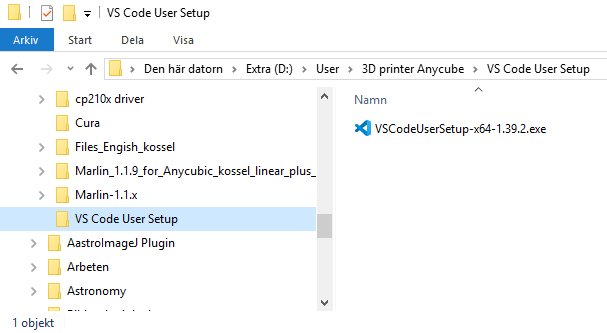

There where several software to chose from at the Marlin page. I decided to try the VS Code from Microsoft, I think I can use that software in the future for other projects as well. I downloaded it to my 3D printer map where I collect the needed software. Then installed it.


3D printer, assembling and setup

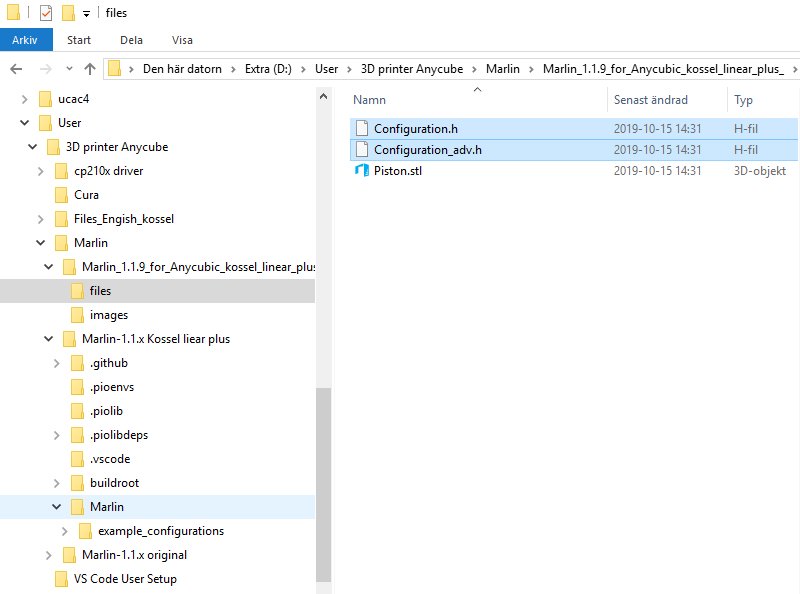

Rearrange, rename my maps and replaced the configuration files with the new that is pre configured for Kossel Linear Plus printer.


3D printer, assembling and setup

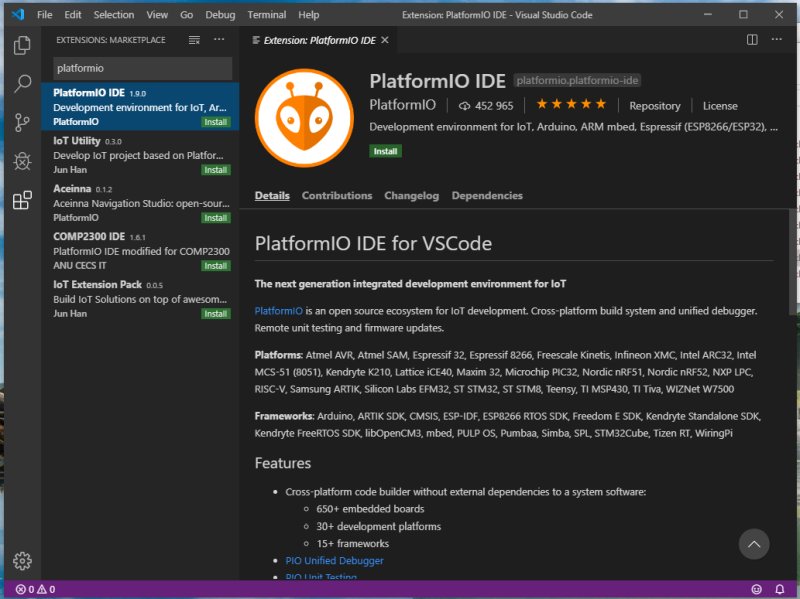

Start up VSCode and from there I install the PlatformIO IDE, for more details, see Marlin's homepage.


3D printer, assembling and setup

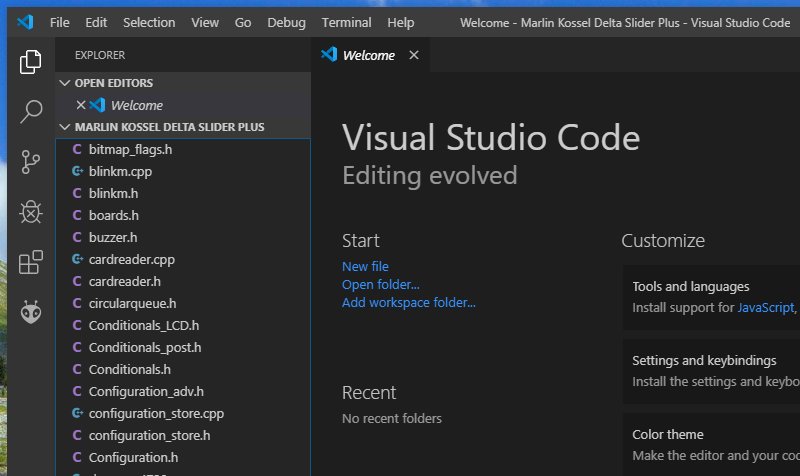

After installation, restart VSCode and open the Marlin folder.
